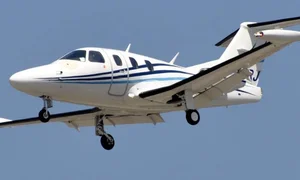

Business Jet Eclipse 500

Ask question

At JETVIP you can rent or buy Eclipse 500 aircraft at the best price on the business aviation market.

Model
Eclipse 500
Show all Eclipse Aerospace models (2 )
Capacity
up to 6 pax
Speed
685 km/h
Range
2584 km
Trunk volume
0.45 cub.m
Eclipse 500 относится к категории Entry level jet (VLJ)

Rental price (1h.)

~ 2500 €

Eclipse 500 plane's characteristics

Technical

Flight range:
2584 km
Cruising speed:
685 km/h
Flight altitude:
12500 m
Take-off weight:
2132 kg
Number of engines:
2
Engine model:
Pratt & Whitney Canada PW600

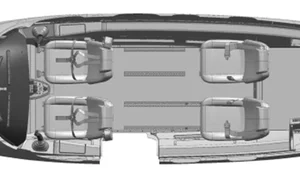

Salon

Max. num. of passengers:
6
Opt. num. of passengers:
3
Cabin length:
3.76 m
Salon width:
1.42 m
Salon height:
1.27 m
Cabin Zones:
1
Trunk volume:
0.45 cub.m

Plane size

Plane length:
10.2 m
Aircraft height:
3.35 m
Wingspan:
11.0 m

JETVIP Market Data

Approx. purchase price:
$2 250 000

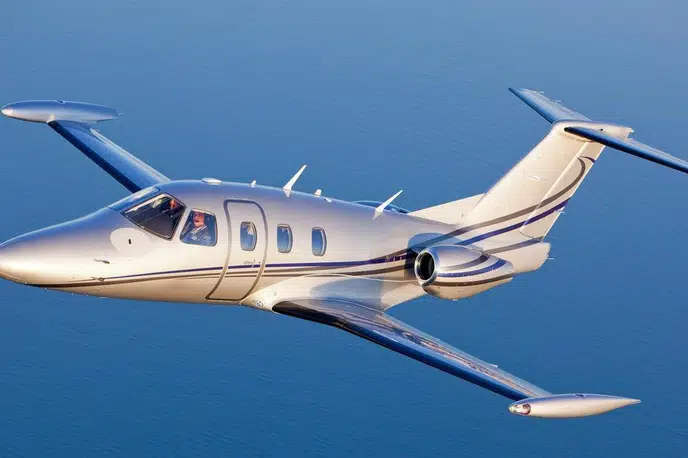

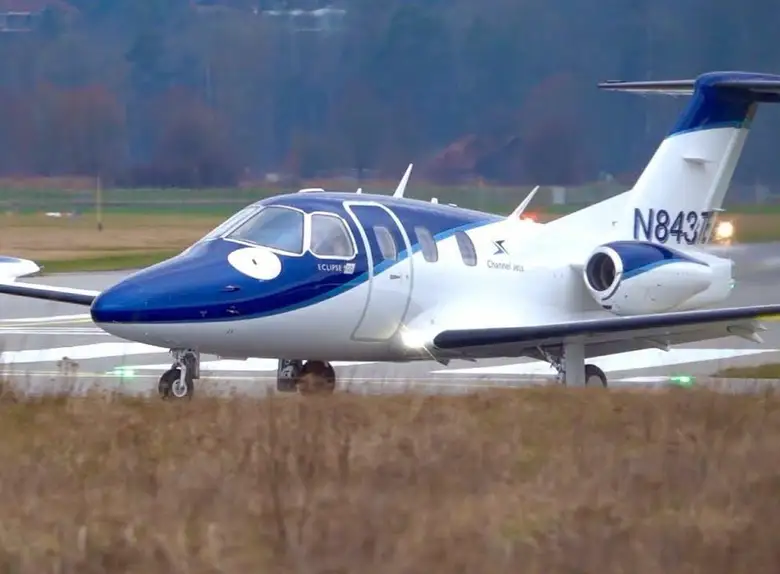

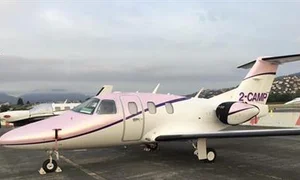

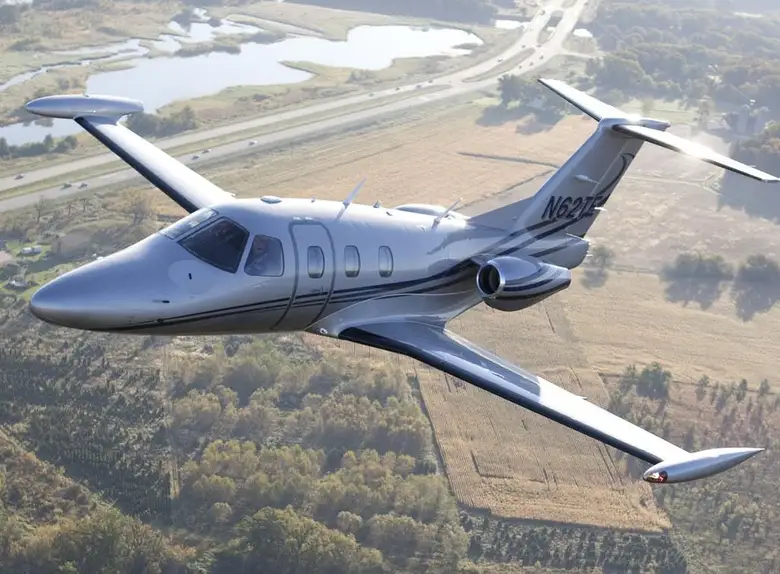

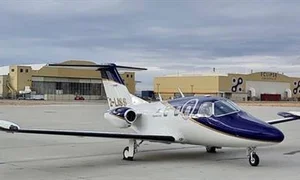

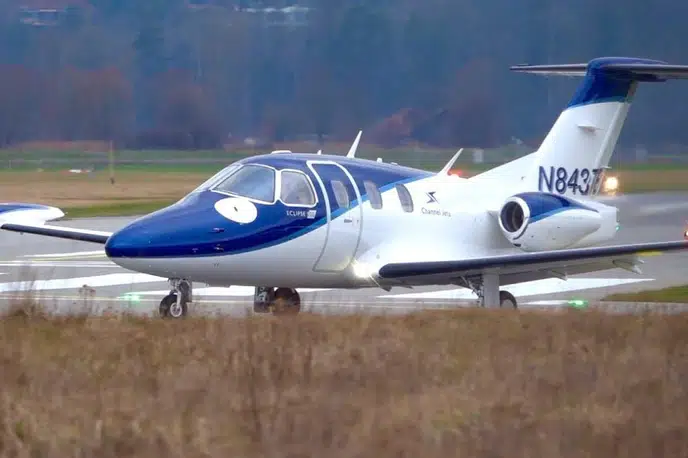

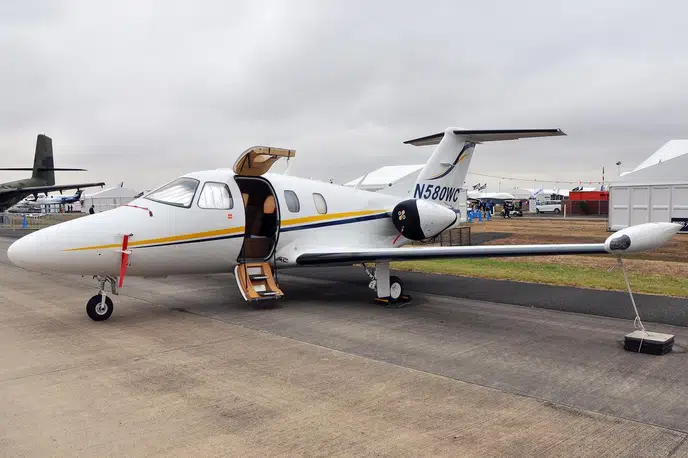

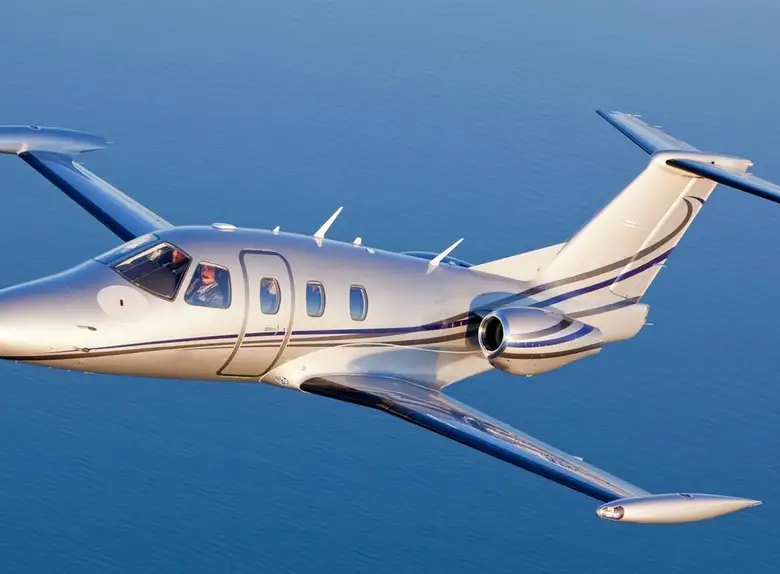

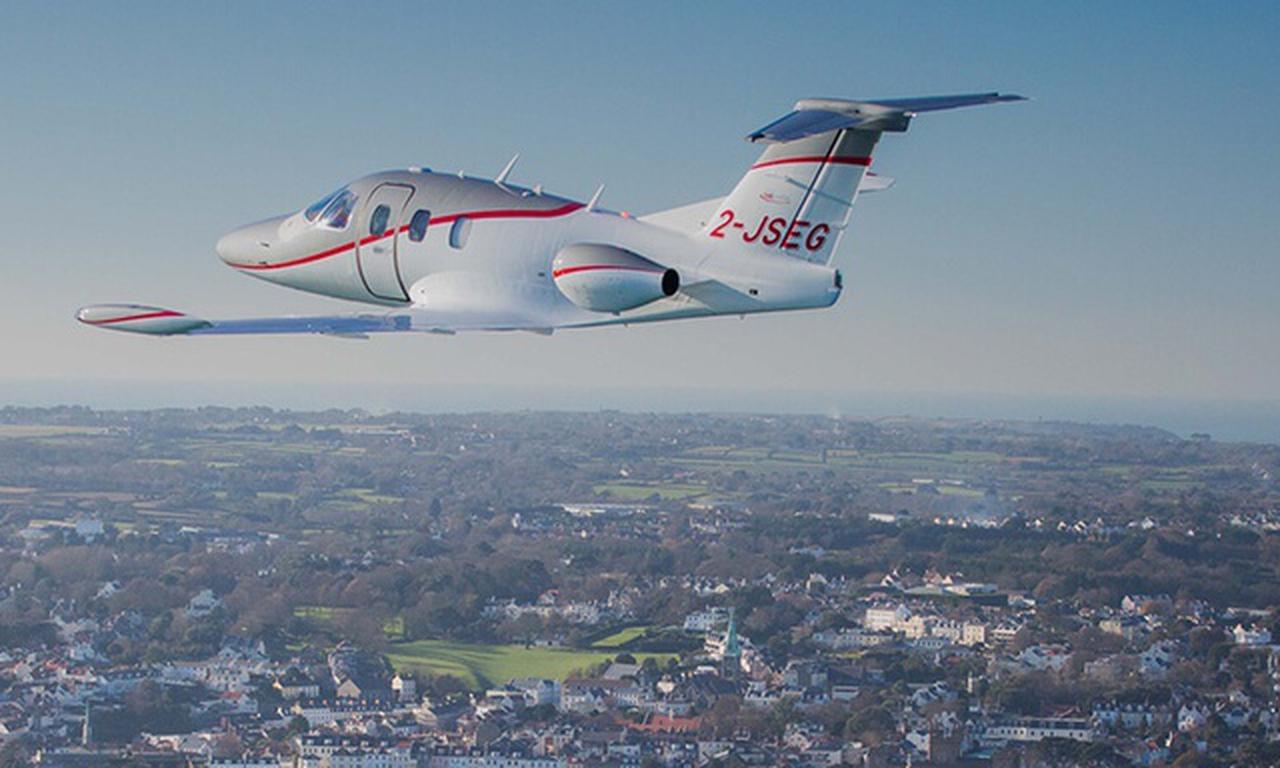

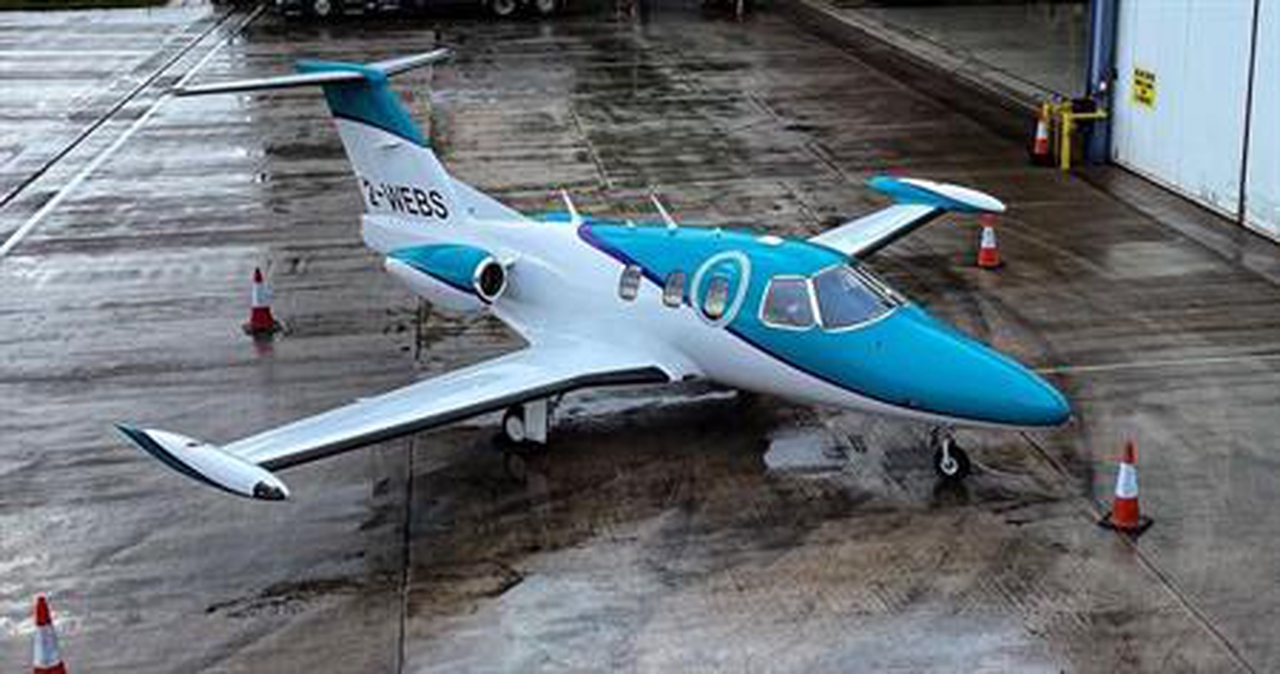

Description of the aircraft Eclipse 500

Eclipse 500 is a jet passenger business jet. Belongs to the class of light aircraft. The American company Eclipse Aviation began developing the Eclipse 500 in 1998. In 2006, the jet received an FAA type certificate. At the same time, the first mass deliveries began. The Eclipse 500 is the world's only certified twin-engine ultralight jet.

Specifications

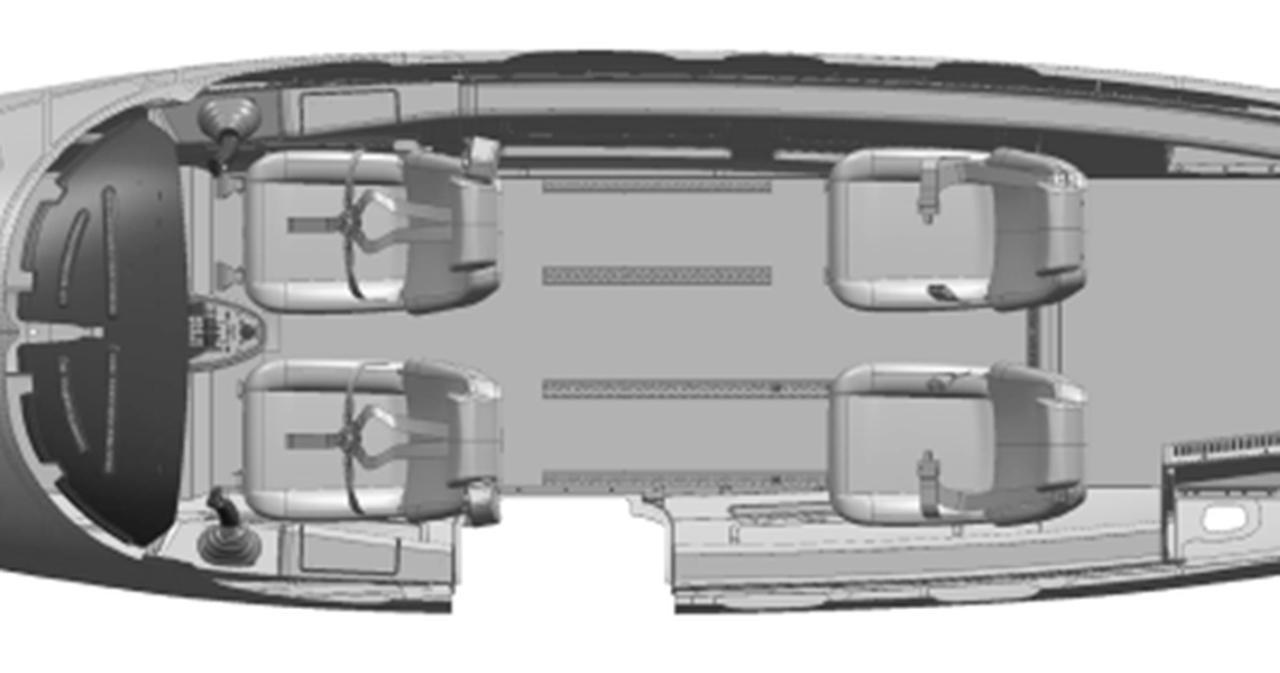

The Eclipse 500 jet accommodates two crew members and four passengers. The ceiling height is 1.27 m, the cabin width is 1.42 m. There is no toilet and VIP services on the plane. At the same time, according to surveys by DayJet, passengers are not worried about the lack of these amenities.

The thing is that this model is not designed for long-distance and long flights. The maximum distance that the Eclipse 500 can cover is approximately 2500 km. In fact, this is a compact air taxi.

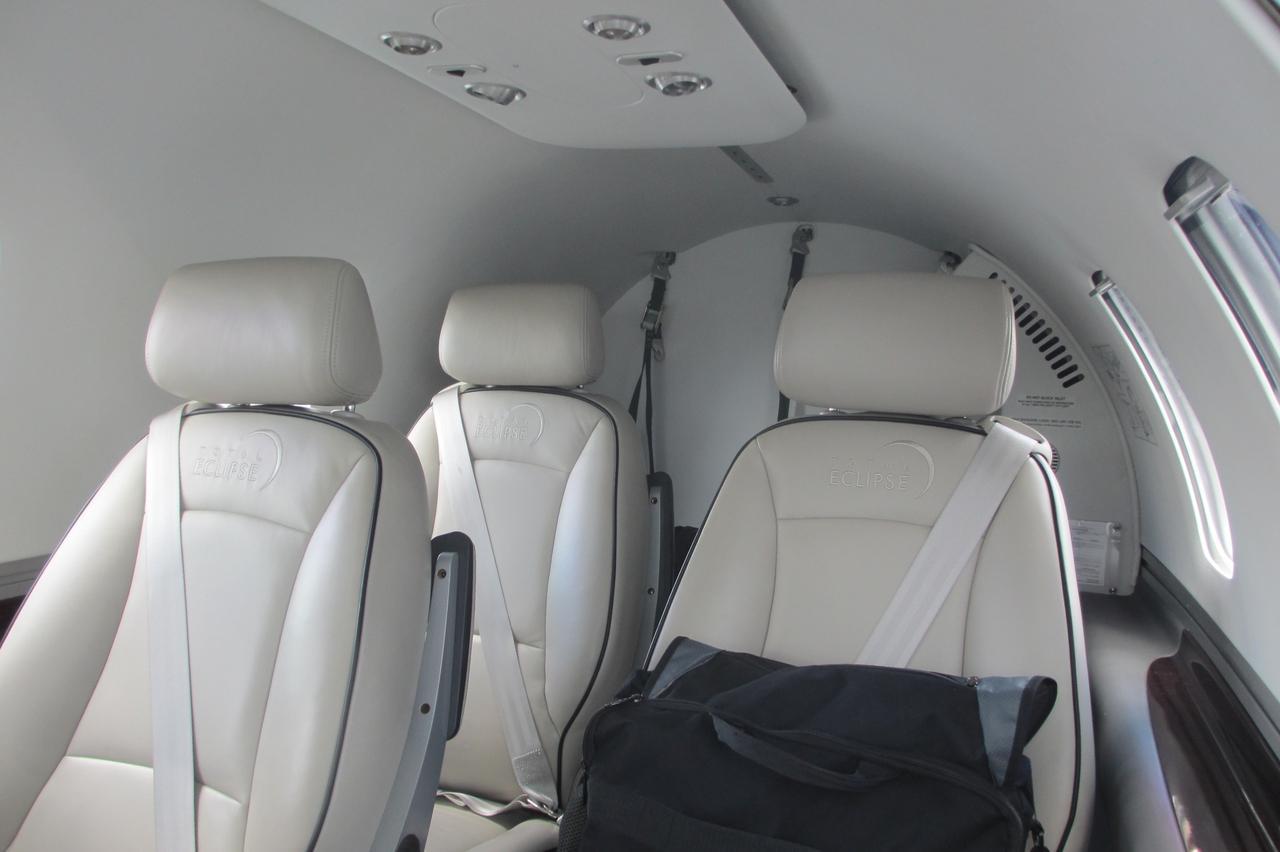

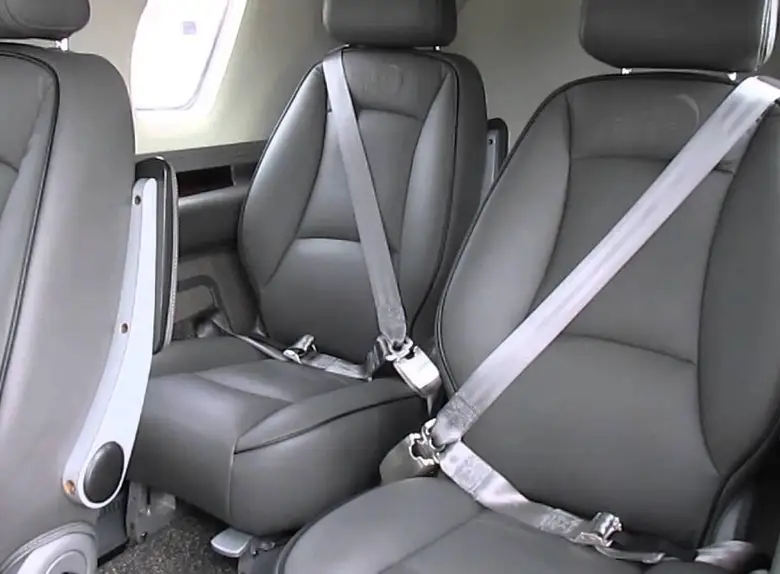

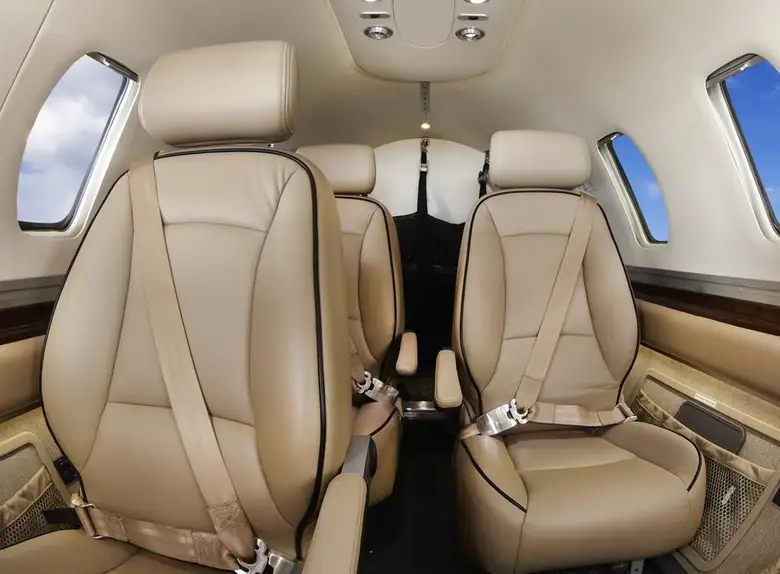

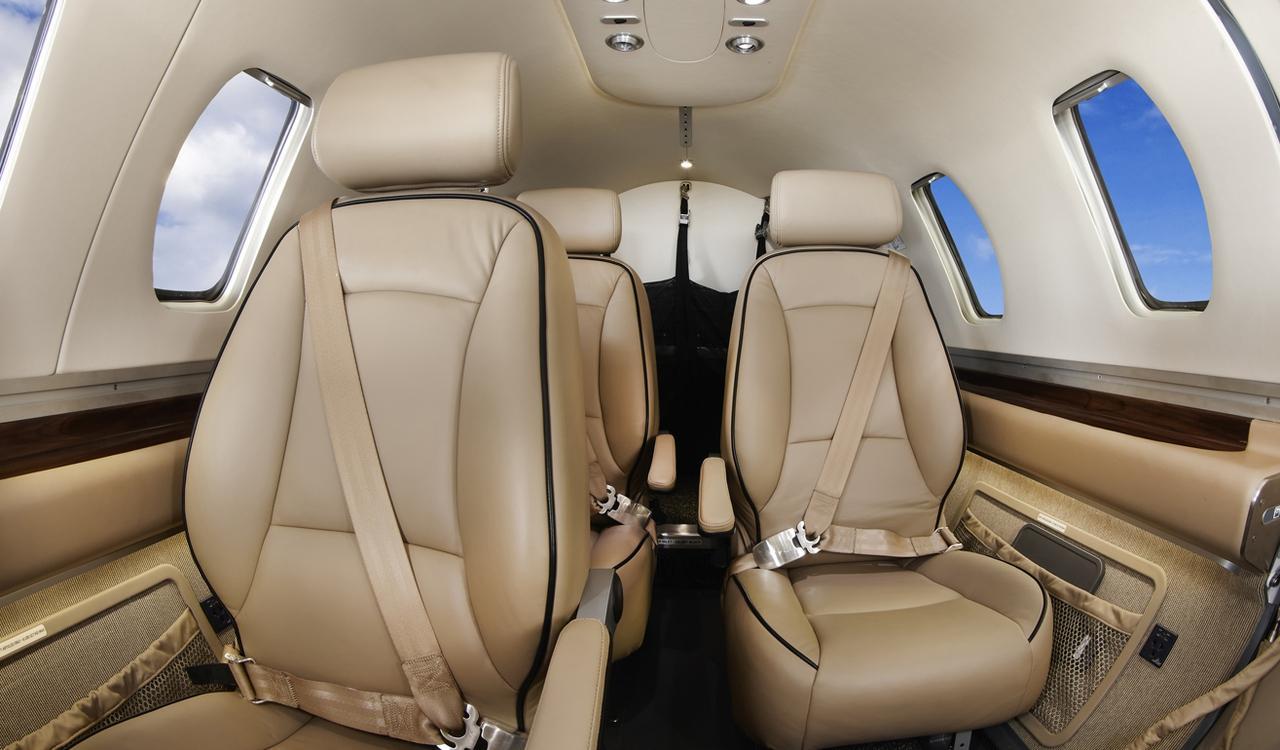

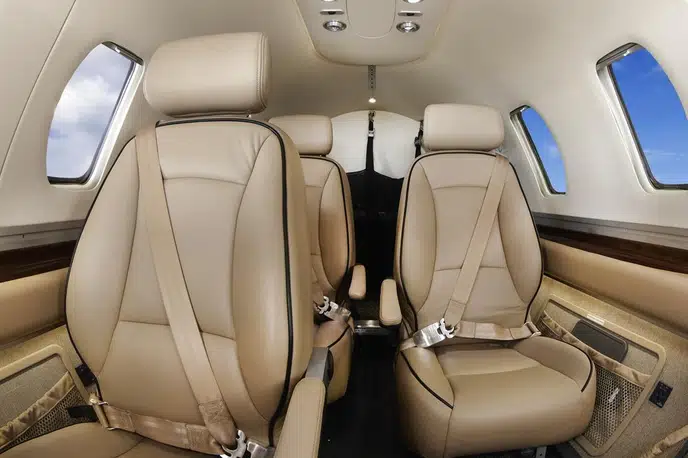

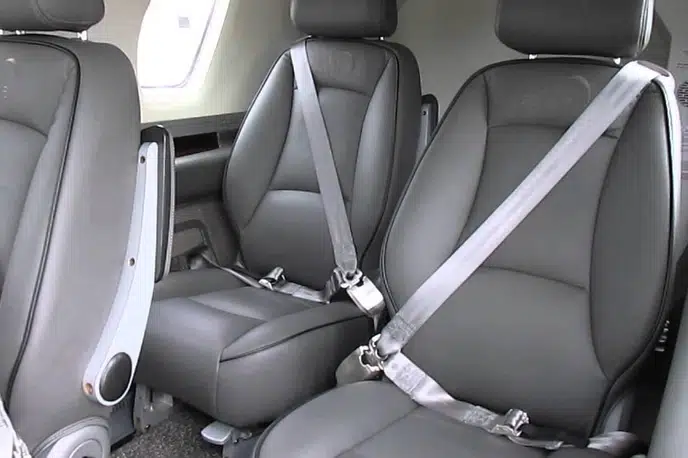

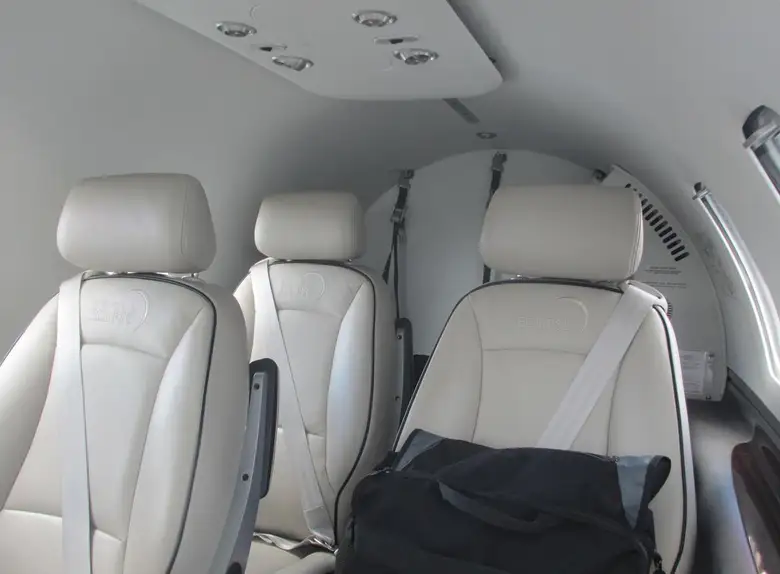

The interior is stylish and discreet. Comfortable soft leather chairs are equipped with armrests, cup holders and folding tables. The back can be folded back, the body can be moved back or forward a little.

The JETVIP company offers the rental of an Eclipse 500 aircraft at a cost of 2,500 € per hour.

Aircraft Data

  • ICAO Code: EA50
  • Manufacture: Eclipse
  • Class: Business Jet
  • Crew: 1 or 2
  • Passengers: 5
  • Engines: 2
  • Max Speed: 370 knots (425 mph, 685 km/h)
  • MTOW: 5,950 lb (2,699 kg)
  • Max Range: 1,125 nmi (IFR with 45 min NBAA reserve) (1,295 mi, 2,084 km)

General Characteristics:

  • Length: 33 ft 1 in (10.1 m)
  • Wingspan: 37 ft 3 in (11.4 m)
  • Height: 11 ft 0 in (3.4 m)
  • Empty weight: 3,550 lb (1,610 kg)
  • Loaded weight: 5,520 lb (2,504 kg)
  • Useful load: 2,400 lb (1,089 kg)
  • Max. takeoff weight: 5,950 lb (2,699 kg)
  • Powerplant: 2 × Pratt & Whitney Canada PW610F turbofan engines, 900 lbf (4 kN flat-rated to > ISA+10C) each

Performance data:

  • Service ceiling: 41,000 ft (12,500 m)
  • Rate of climb: 3,424 ft / min (1,044 m / min)
  • Takeoff distance: 2,345 ft (715 m)
  • Landing distance: 2,250 ft (686 m)
  • Stall speed: 69 knots (79 mph, 128 km/h) in landing configuration
  • The Total Eclipse Jet Program

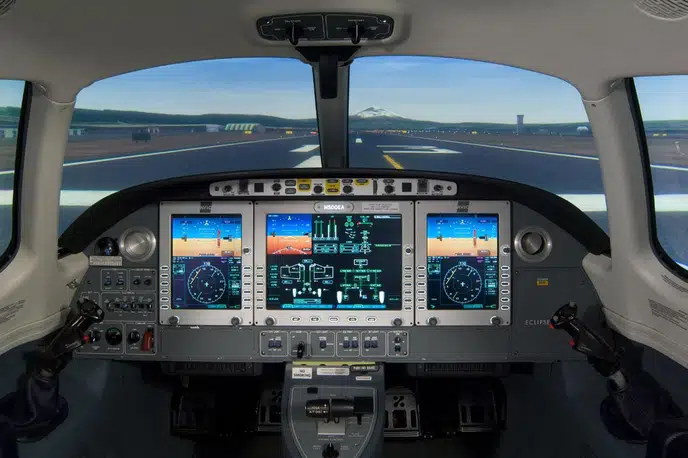

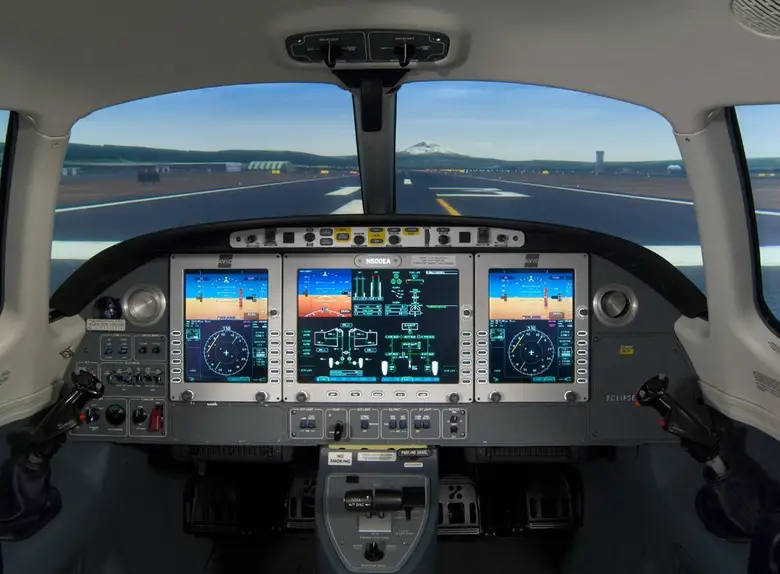

    Total Eclipse program customers can buy a fully configured EA500 aircraft that encompasses all currently available features and functionality. Specific components will include flight to 41,000 feet, 20,000 cycle airframe life, Flight Into Known Icing capabilities, an on-board color radar, electronic moving maps, and eCharts (Jeppesen), all presented directly on the Total Eclipse multifunction display through the fully integrated Avio IFMS.

    • Factory certified, pre-flown jet
    • Tip-to-tail factory warranty
    • Certified to 41,000 ft
    • Avio Integrated Flight Management System (IFMS)
    • P&WC Gold ESP paid current to date of delivery
    • Mandatory SBs and ADs complete to date of delivery
    • One (1) initial or recurrent type rating (SimCom)
    • One (1) year Jeppesen NA subscription
    • One (1) year of Aircraft Maintenance Manual updates
    • Certified for Flight Into Known Icing (FIKI)
    • RVSM certified
Read more

Calculate the cost of the flight to Eclipse 500

Operating costs Eclipse 500
Variable costs
200 hours per year
400 hours/year
  • Fuel cost $400/gallon
    200 hours per year $51,920
    400 hours/year $103,840
  • Support
    200 hours per year $48,000
    400 hours/year $48,000
  • Engine repair
    200 hours per year $49,222
    400 hours/year $49,222
  • Additional crew/landing/processing costs
    200 hours per year $40,000
    400 hours/year $80,000
  • Variable costs
    200 hours per year $5,000
    400 hours/year $10,000
  • Insurance
    200 hours per year $14,648
    400 hours/year $14,648
Fixed costs
  • Crew
    200 hours per year $114,646
    400 hours/year $114,646
  • Crew training
    200 hours per year $13,132
    400 hours/year $13,132
  • Hangar
    200 hours per year $14,070
    400 hours/year $14,070
Total
$394,438
$575,366
Buy/Sell Aircraft

By clicking the "Submit application" button, you confirm your consent to processing of personal data

By clicking the "Submit application" button, you confirm your consent to processing of personal data

Frequently Asked Questions about Eclipse 500

What is the required length of a runway for a Eclipse 500 aircraft?

The Eclipse 500 aircraft requires a takeoff distance of 0 m  and landing distance of 0 m.

What category is a Eclipse 500 ?

The Eclipse 500 belongs to a Entry level jet (VLJ) category

What is the engine model of the Eclipse 500 aircraft?

The Eclipse 500 is powered by engines  Pratt & Whitney Canada PW600

What is the size (volume) of the luggage compartment of the Eclipse 500 plane?

The Eclipse 500 aircraft has the following luggage compartment size (volume) - 0.45 m3

How many passengers does the model Eclipse 500 can take?

The Eclipse 500 has typical seating for 6 pax passengers.

What is the height, width and length of the Eclipse 500 aircraft cabin?

The Eclipse 500 aircraft cabin has the following dimensions: cabin height 1.27 m. , cabin width 1.42 m. , cabin length 3.76 m.  (from the cockpit to the luggage compartment.)

What is the service ceiling of a Eclipse 500 ?

The Eclipse 500 has a service ceiling of 12500 m..

What is the max cruise speed of a Eclipse 500 ?

The max cruise speed of the Eclipse 500 is 685 km./h..

What is max distance range of a Eclipse 500 ?

The Eclipse 500 has a max range of 2584 km.

What is the direct operating cost (DOC) of a Eclipse 500 ?

The DOC for the Eclipse 500 is $180,928.

How much does it cost to charter a private jet Eclipse 500 ?

Charter price for Eclipse 500 staring from от 2500 € per hour. Ask our manager for accurate pricing.

How much is a new (purchase price) private jet Eclipse 500 ?

The Eclipse Aerospace Eclipse 500 list price is $2 250 000

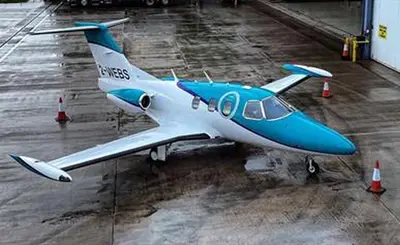

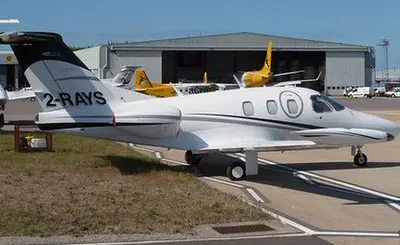

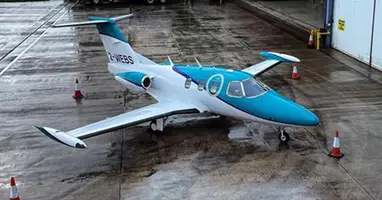

We have 37 Eclipse 500 planes on our base
