Бизнес джет Ан-225 Мрия

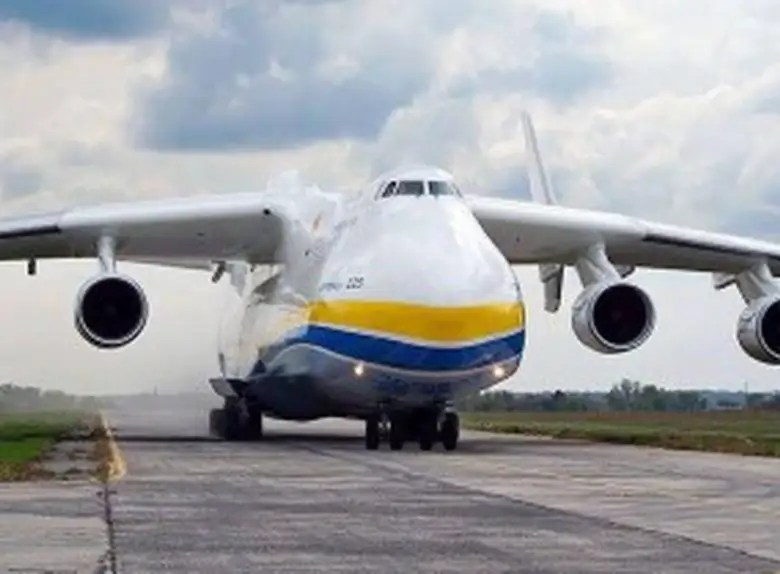

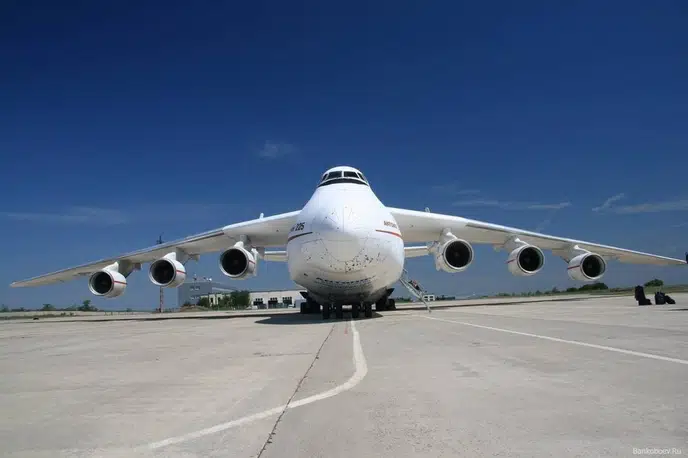

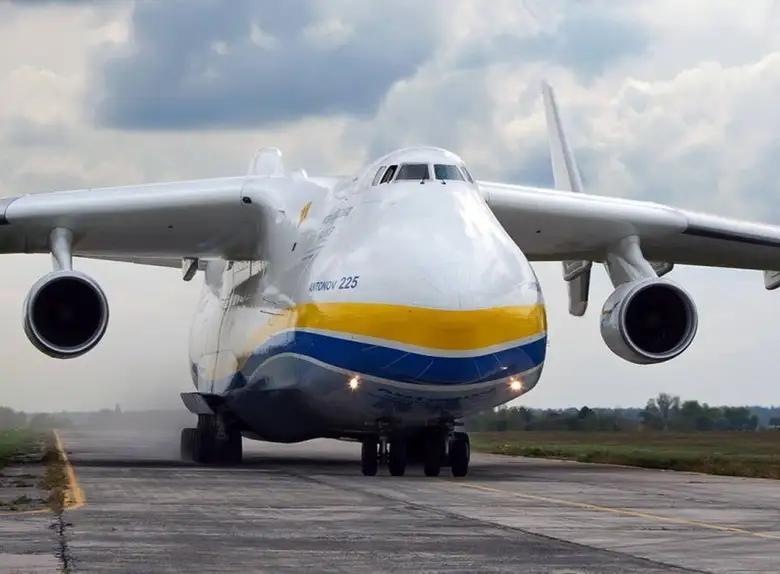

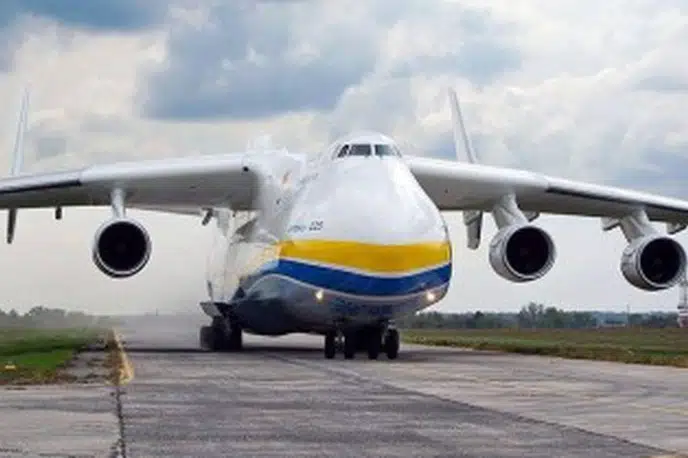

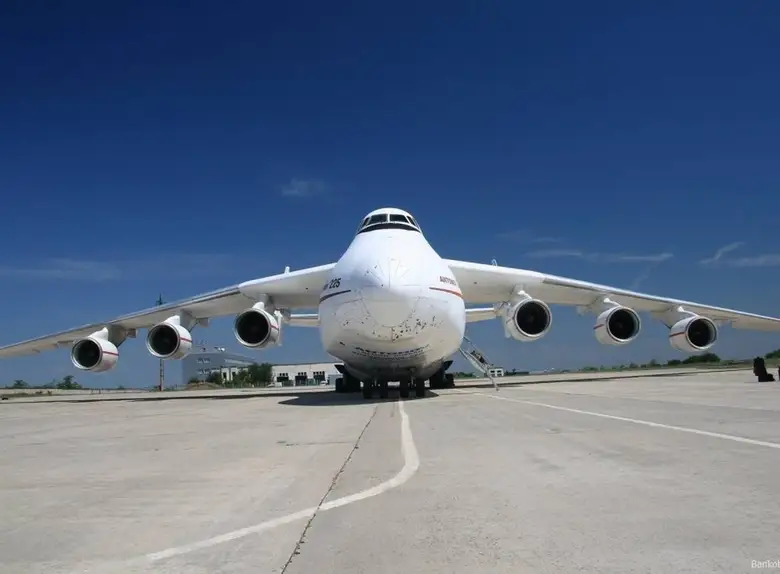

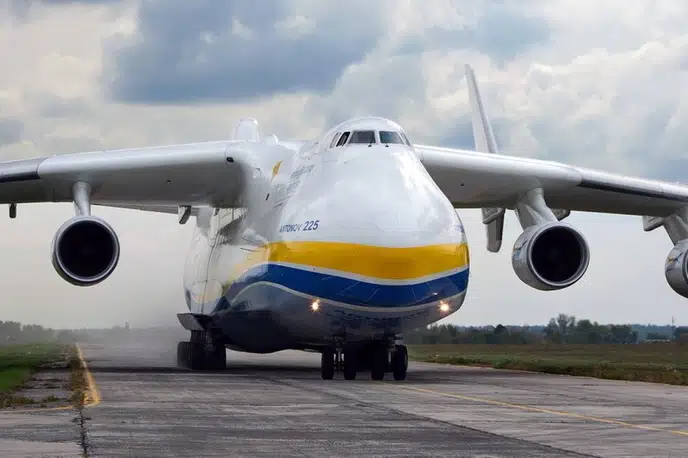

Внешний вид

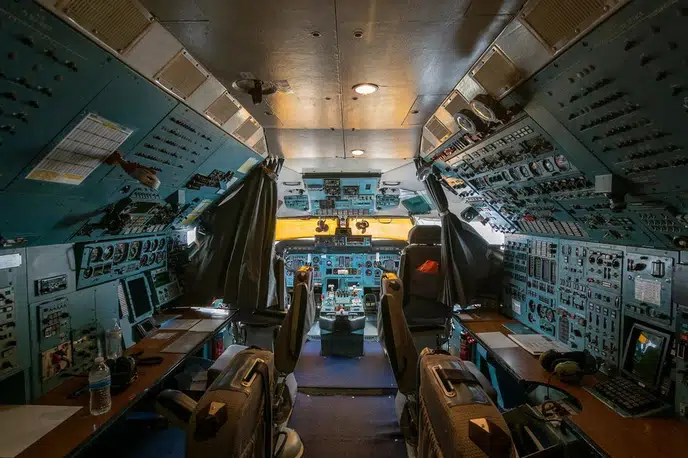

Фото интерьера

Flight and line-up characteristics

Specifications

Aircraft category:
Russian aircraft
Maximum range:
4,500 км
Cruising speed:
850 km/h
Maximum flight altitude:
12,000 m
Maximum take-off mass:
560,000 kg

Plane size

Plane length:
84.0 m
Aircraft height:
18.2 m
Wingspan:
88.4 m

Salon features

Maximum number of passengers:
88
Optimal number of passengers:
88
Cabin length:
43.0 m
Salon width:
6.4 m
Salon height:
4.4 m
Salon volume:
0.0 cub.m
Trunk volume:
1,100.0 cub.m

Prices

Rental price:
Requested by

Description

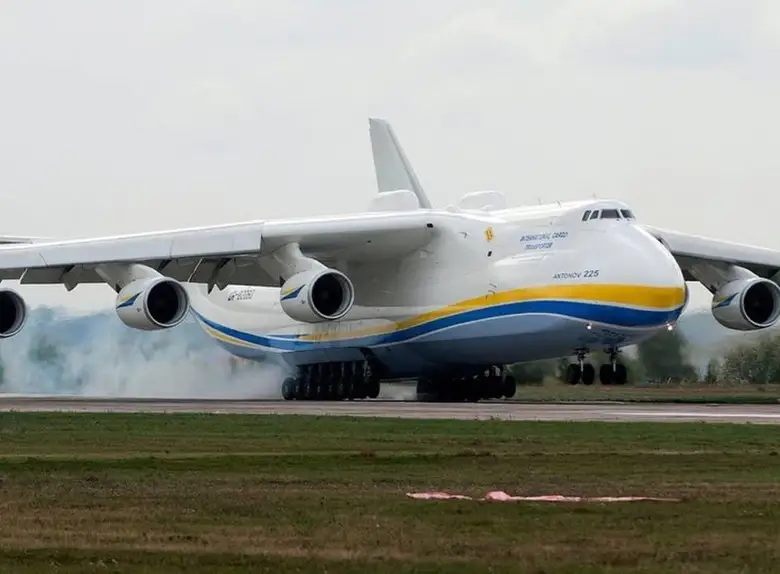

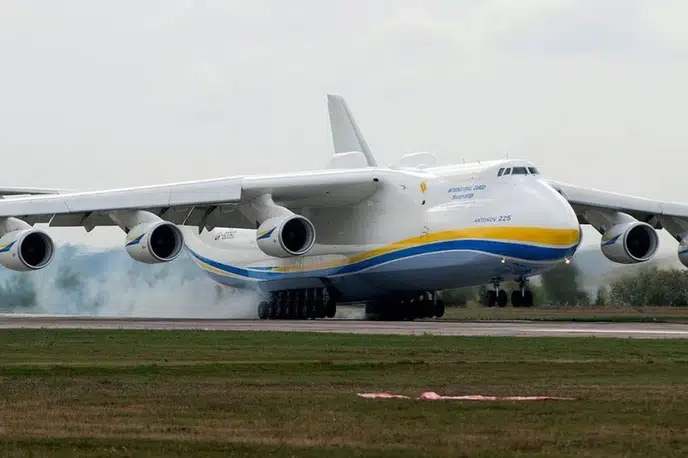

An-225 "Mriya" (Ukrainian Mriya: "Dream", according to NATO codification: English Cossack "Cossack") is the heaviest cargo-lifting aircraft ever taken into the air.

The An-225 Mriya aircraft was originally created for the needs of the Soviet space industry. The An-225 was created as an aircraft designed to solve a narrow range of rather unique transport tasks, but the use of the An-124 as a basis gave it certain qualities of a universal transport aircraft. Equipped with six D18T aircraft engines manufactured by Motor Sich JSC, developed by ZMKB Progress

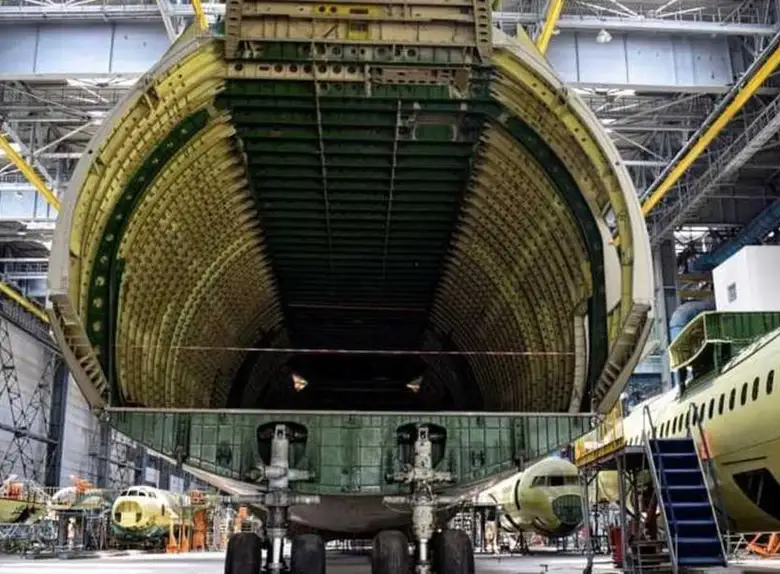

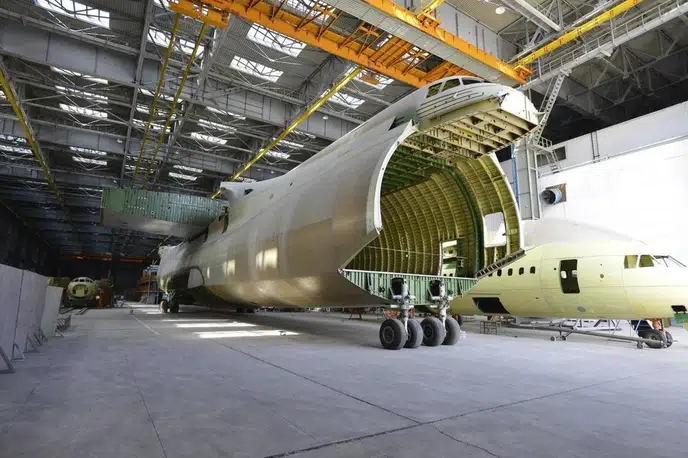

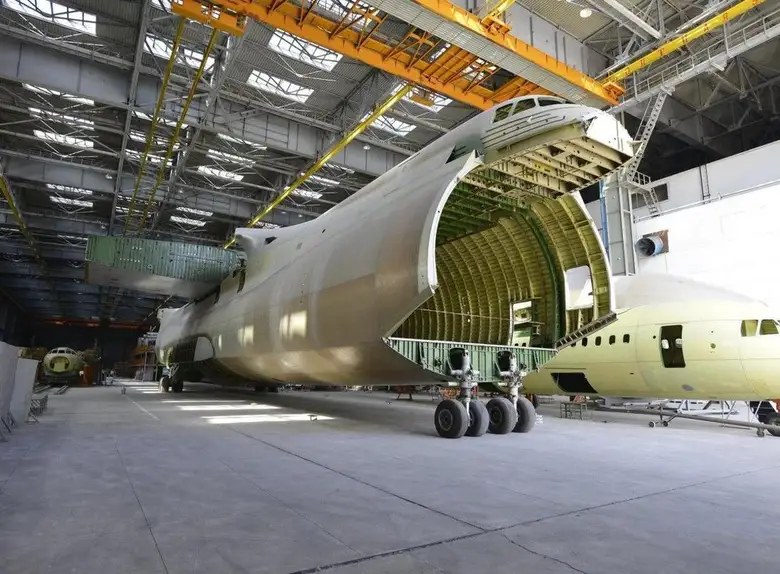

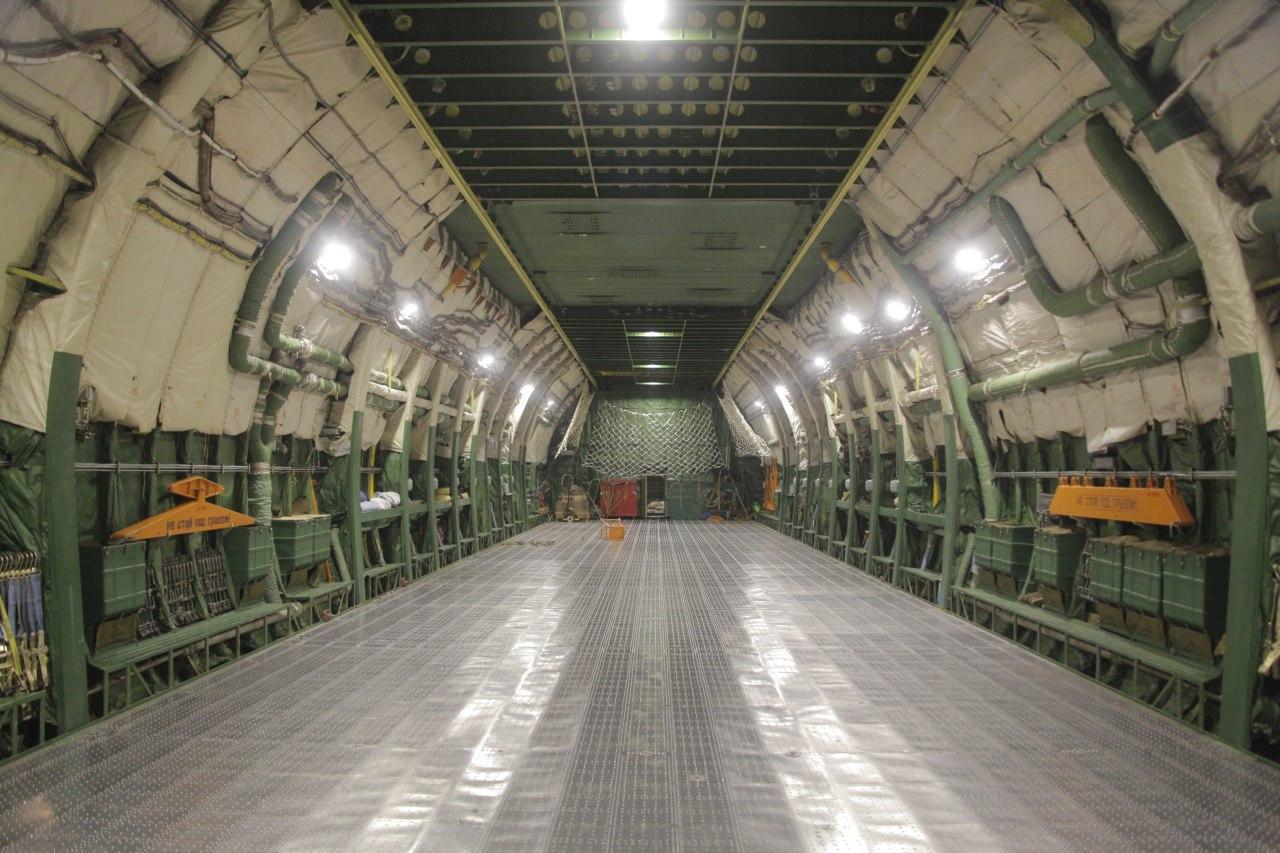

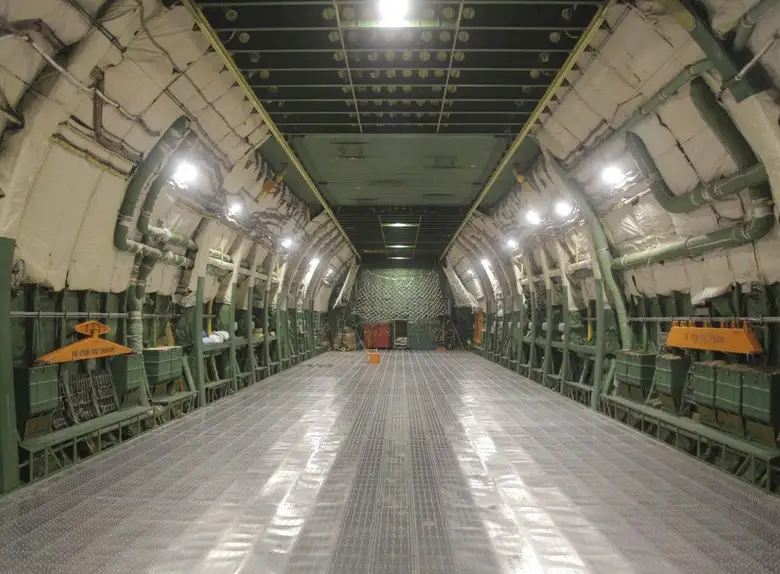

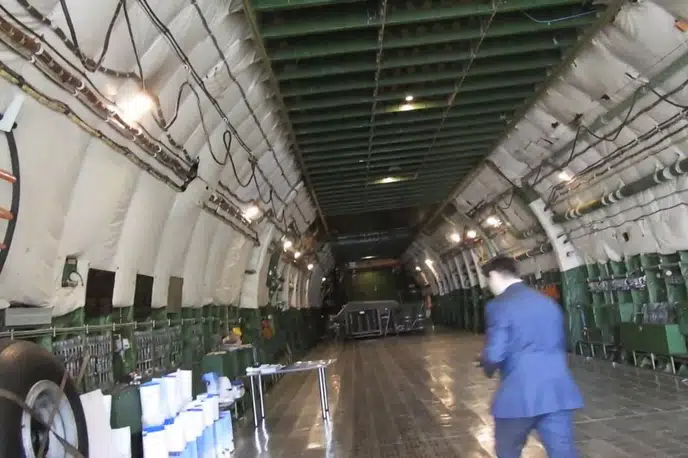

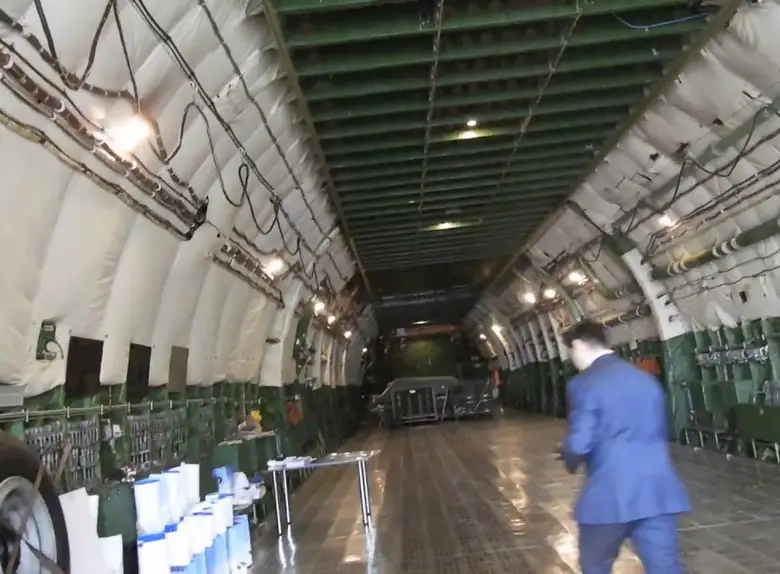

Cargo compartment dimensions: length - 43 m, width - 6.4 m, height - 4.4 m. The aircraft's cargo compartment is hermetically sealed, which significantly expands its transport capabilities. Above the cargo compartment, on the 2nd deck, there is a cabin for six people of the replacement crew and 88 people accompanying the cargo. Its tightness significantly increases the aircraft's carrying capacity. Above it is a compartment for passengers - 6 crew members and up to 88 people to accompany the cargo. The wingspan was 88.4 m, and the weight was 250,000 kg. When the cargo was taken on board, the weight increased to 640,000 kg. The aircraft developed a cruising speed of up to 850 km / h. With a load of 200 tons, it was able to cover distances of 4,000 km. Without cargo, its real flight range is 15,400 km. Fuel consumption in cruising mode - 15.9 tons per hour. Fuel in the An-225 is housed in 13 wing tanks, its total weight is 365 tons. The fueling time of the air giant is decent: from half an hour to one and a half days; up to 70 tankers can be involved in the process

The aircraft has the ability to:

transportation of general cargo (large, heavy, long) with a total weight of up to 250 tons;
inland non-stop transportation of goods weighing 180-200 tons;
intercontinental transportation of goods weighing up to 150 tons;
transportation of heavy oversized mono-cargoes weighing up to 200 tons outside on the fuselage;
the aircraft is the base for the creation of aerospace systems (project).

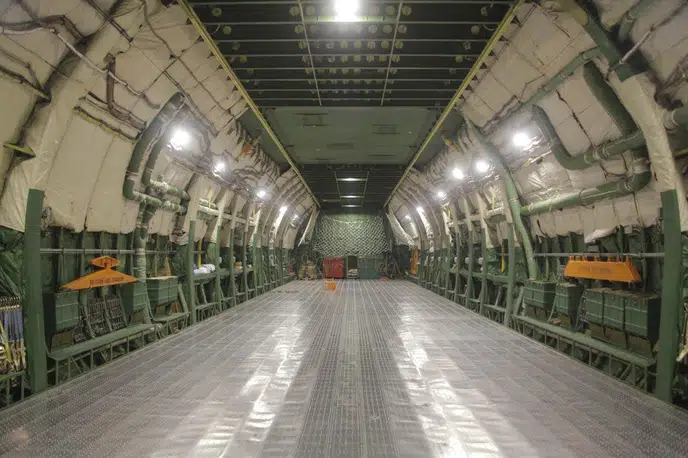

The aircraft has a spacious cargo compartment, which allows transporting various cargoes inside the fuselage, for example:

16 ten-ton universal aviation containers UAK-10;
50 passenger cars;

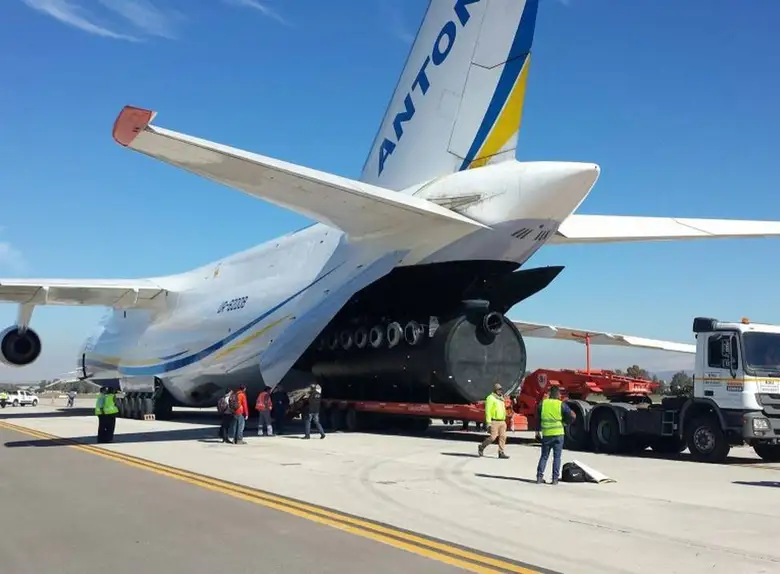

mono-cargoes weighing up to 200 tons (turbines, generators, dump trucks "BelAZ", "Komatsu", "Yuclid", etc.).

"Mriya" holds an absolute record of carrying capacity - 253.8 tons

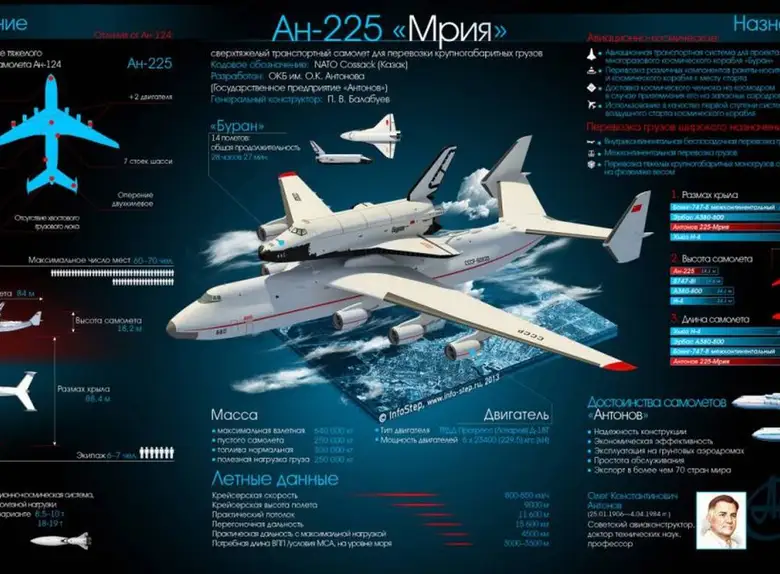

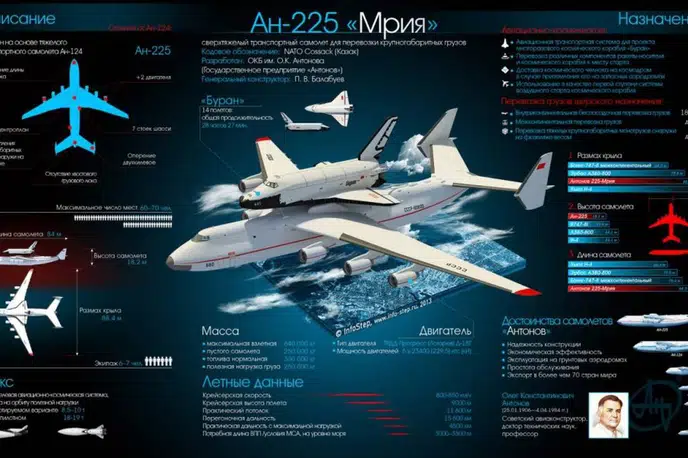

Flight performance
Crew, people: 6
Wingspan, m: 88.4
Length, m: 84
Height, m: 18.2
Wing area, m2: 905
Weight:
empty aircraft, kg: 250,000
maximum takeoff, kg: 640 000
Non-afterburner thrust, kN: 1377
Fuel weight, normal, kg: 300,000
Cruising speed, km / h: 850
Range of flight:
practical, km: 15 400
practical with a load of 200 tons, km: 4000
Practical ceiling, m: 12,000
Payload, kg: up to 250,000
Engine
Engine type: Dual-circuit turbojet
Model: "D-18T"
Traction:
takeoff, kgf: 6 × 23 430
cruising mode, kgf: 6 × 4860
Engine weight, kg: 6 × 4100
Specific fuel consumption
cruising mode, kg / kgf h: 0.57-0.63
takeoff mode, kg / kgf h: 0.34
MTBF, h: 6000
Dimensions:
length, mm: 5400
diameter, mm: 2330

What is maximum Baggage capacity in Ан-225 Мрия ?

Baggage capacity in Ан-225 Мрия is 1100.0 m3

The Ан-225 Мрия has typical seating for 88pass. (up to 17) and 4 crew.
Cabin height on Ан-225 Мрияis 4.4 m..
The Ан-225 Мрия cabin is 43.0 m. long from the cockpit bulkhead to the aft lavatory (excluding baggage).
The Ан-225 Мрия has a service ceiling of 12000 m..
The max cruise speed of the Ан-225 Мрия is 850 km./h..
The Ан-225 Мрия has a max range of 4500 km.
